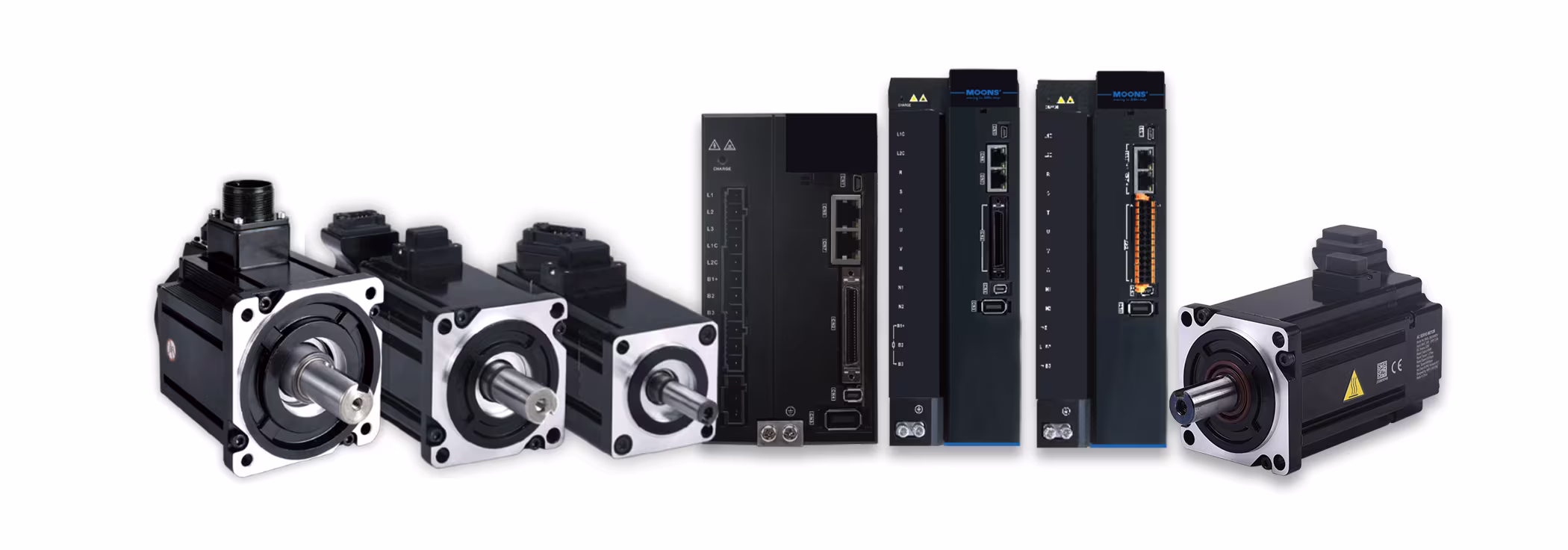

Introducing the M5 Servo Drive Series!

The M5 Servo Drive Series is engineered to deliver exceptional performance and precision, representing a significant advancement over its predecessor, the SV200 family of servo drives. With an industry-leading control bandwidth of 3.5 kHz, it offers unparalleled speed and accuracy in motion control applications.

This series boasts a diverse range of power ratings from 200W to 3000W, catering to various industrial needs, and is compatible with a wide array of encoder options. Equipped with essential safety features such as STO (SIL3), E-STOP, Dynamic Braking, and regen control, the M5 Drive Series ensures operational security.

Facilitating seamless setup, testing, and commissioning, the Luna software is available for download at no charge. Luna offers an intuitive interface and a plethora of tools including notch filter design, resonance frequency analysis, precise oscilloscope functionality, auto-tuning, and simplified drive configuration.

Wide Selection of Servo Drives Available

Key Features Include:

• Drive motors ranging from 200W to 3000W (dependent on drive model).
• Compatibility with select high-resolution 17/21/23/26-bit encoders for precise positioning.
• Support for industry-standard safety features including dynamic braking, secondary encoders, E-Stop, and STO.
• Intuitive software with auto-tuning, multi-axis tuning, notch filter design, and settling time optimization.
• Comprehensive resonance suppression algorithms to eliminate errors during acceleration, deceleration, and steady-state travel.
• Algorithms for external disturbance compensation to minimize errors caused by mechanical sources such as load changes, external forces, and friction.

Communication Protocol Options:

• Protocol:

  • M56S-2XXXRF: RS-485 (Modbus RTU)
  • M56S-2XXXECX: EtherCAT
  • M56S-2XXXCX: CANopen

• Digital In/Out:

  • M56S-2XXXRF: 10 / 6
  • M56S-2XXXECX: 8 / 4
  • M56S-2XXXCX: 8 / 4

• Analogue In/Out:

  • M56S-2XXXRF: 2 / 2
  • M56S-2XXXECX: 2 / 2
  • M56S-2XXXCX: 2 / 2

(Note: Profinet and EtherNet/IP models will be available soon.)

The M5 Servo Drive Series ensures high system throughput, minimizing downtime with its support for fast motion profiles, troubleshooting aids, and automatic error compensation. When paired with M5 Servo Motors, its precise motor control algorithms guarantee smooth and accurate motion control.

With a variety of M5 Servo Drives tailored to different applications and OEM designs, we offer customizable solutions to suit diverse needs. Contact Engineering for inquiries regarding customization options.

Achieve maximum value without compromising on performance with the M5 Servo Drive Series, engineered for optimal cost-effectiveness.

For detailed specifications and ordering information, refer to the available part numbers listed below:

• M56S-21A8RF: Servo Drive with RS-485 (Modbus RTU), 200W
• M56S-23A0RF: Servo Drive with RS-485 (Modbus RTU), 400W
• M56S-24A5RF: Servo Drive with RS-485 (Modbus RTU), 750W
• M56S-26A0RF: Servo Drive with RS-485 (Modbus RTU), 1.0kW
• M56S-210ARF: Servo Drive with RS-485 (Modbus RTU), 1.5kW
• M56S-213ARF: Servo Drive with RS-485 (Modbus RTU), 2.5kW
• M56S-21A8ECX: Servo Drive with EtherCAT, 200W
• M56S-23A0ECX: Servo Drive with EtherCAT, 400W
• M56S-24A5ECX: Servo Drive with EtherCAT, 750W
• M56S-26A0ECX: Servo Drive with EtherCAT, 1.0kW
• M56S-210AECX: Servo Drive with EtherCAT, 1.5kW
• M56S-21A8CX: Servo Drive with CANopen, 200W
• M56S-23A0CX: Servo Drive with CANopen, 400W
• M56S-24A5CX: Servo Drive with CANopen, 750W
• M56S-26A0CX: Servo Drive with CANopen, 1.0kW
• M56S-210ACX: Servo Drive with CANopen, 1.5kW
• M56S-213ACX: Servo Drive with CANopen, 2.5kW
